Product description

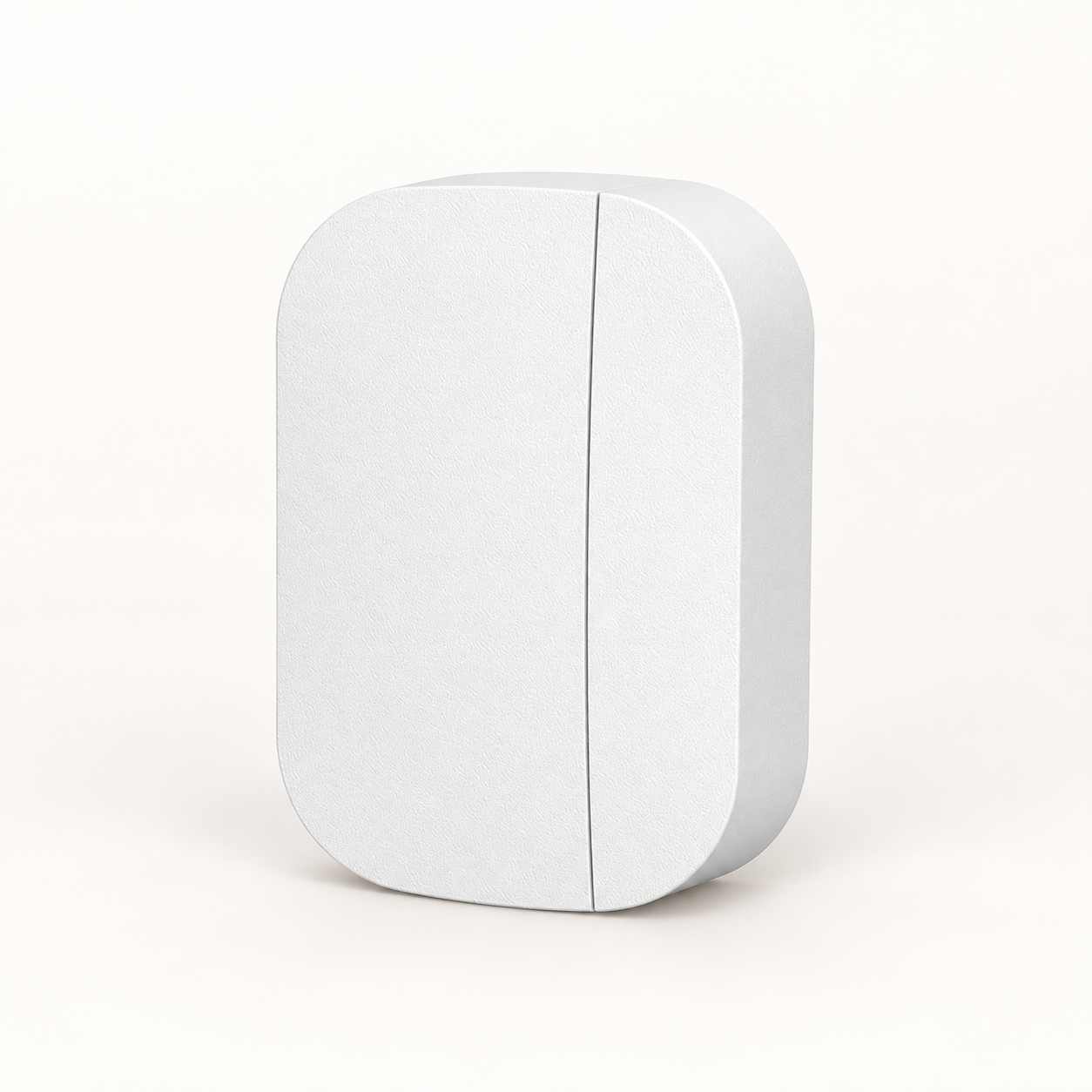

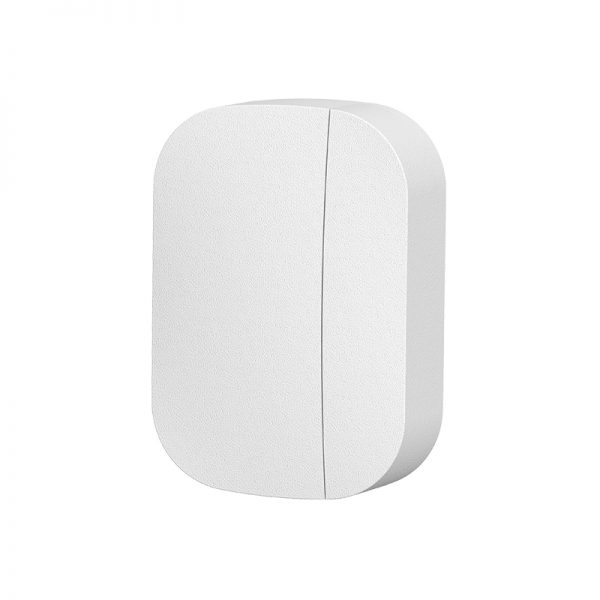

Magnetic Contact Sensor 90142
The 90142 is a wireless magnetic contact sensor using a replaceable coin-cell supply. Its published details include a blue LED indicator, compact dimensions and an open-air range reference.
The magnetic contact sensor combines a coin-cell supply with RF transmission and a blue LED indicator. The published dimensions, standby current and temperature range support an initial check of mounting space and operating conditions. The product record states that the specified battery is included.
A contact-sensor installation also depends on the sensor and magnet arrangement and on the receiving system. Confirm the detection gap, mounting position, compatible receiver and pairing procedure before defining a complete solution. The open-air range is a radio reference, not a guarantee of performance through walls, and standby current alone is not a battery-life promise.
Published sourcing starting points
- MOQTypically 1,000 sets; depends on product type and customisation
- Lead timeAround 50 days after order confirmation
- Trade termsFOB, CIF, EXW and CIP
For a precise quotation: include model, destination market, quantity and customisation.
Technical reference
Technical specifications
| Specification | Published value |
|---|---|
| Frequency | 433.92MHz |
| Operating temperature | -10°C to 55°C |
| LED indicator | Blue |
| Operating voltage | 1 × 3V CR2032 battery (included) |
| Standby current | Less than 5μA |
| Transmission power | Less than 5dBm |
| Dimensions | 36.4 × 50.3 × 13.7mm |
| Open-air range | Max. 50m |
Published model references
Compare model references before quotation
90142 is the sensor reference. A receiver or hub is not identified in the product record. Use the cards below to identify the published reference; sales should confirm the final kit and market version in writing.
90142
Magnetic contact sensor
Confirm the receiver, detection gap and installation arrangement.
Published product highlights
Features buyers can evaluate
The product record supports the following feature statements. Project performance and supporting documents should be confirmed against the exact quoted configuration.
Included coin-cell supply
The source identifies the battery type and states that it is included, which helps define the initial package enquiry.
Published standby current
The standby figure supports electrical comparison; it is not sufficient to calculate a guaranteed battery life.
Compact installation reference
Dimensions and operating temperature are listed for preliminary fit and environment checks.
Planning guidance
Selection guide
Confirm the receiving system
Give the intended receiver or hub model; request protocol and pairing details.
Confirm mounting geometry
Request the sensor/magnet arrangement, detection gap and mounting instructions.
Check range conditions
The maximum range is an open-air value. Ask about walls, installation position and interference in the intended environment.
Use the exact model and application details when requesting a sample or quotation.
Company profile from Kangtai About Us
Manufacturing and development at Kangtai
Kangtai Electric:Technology-Based & Export-Oriented
Founded in 1995, Kangtai Electric presents itself as a National High-tech Enterprise operating under ISO9001, ISO14001 and OHSAS18001 management systems.
- Relevant product scope: smart home and security control products, wireless remote switches, wireless doorbells and voltage testers.
- Development facilities: a Wenzhou city-level Technology Development Center, Mold Manufacturing Center and ISO laboratory.
- Electronics production: DEK solder-paste printing, Yamaha high-speed SMT, Vitronics-Soltec reflow soldering and Saki AOI are listed on the company page.
Supplier context: These figures and facilities are company-level statements from Kangtai About Us.
Request model-specific certificates and test documents for the destination market. Company management systems do not establish approval for every product configuration.
Published company-level customisation scope
OEM/ODM options and sourcing terms to confirm
Kangtai accepts OEM/ODM enquiries for appearance, functionality and packaging. The scope for this model is agreed after review of the requirements.
Model and electrical version
Confirm the exact regional or receiver configuration and any functional changes with the product team.
Packaging and labels
The company FAQ offers customised packaging, instruction manuals and rating labels. Supply the artwork and required market languages.
Samples and documents
Request the intended configuration for testing, with the drawings, instructions and market documents needed for approval.
Published starting points for sourcing
Kangtai’s current company FAQ publishes general terms; they are not a commitment for this model. The product quotation must confirm the final terms.
- Standard-product MOQ
- Typically 1,000 sets; depends on product type and customisation
- Sample preparation
- Typically 10–15 days
- Production lead time
- Around 50 days after order confirmation
- Warranty
- 12 months from shipment, under the published company terms
- Trade terms
- FOB, CIF, EXW and CIP
- Packaging
- Export cartons and neutral colour boxes; custom packaging by enquiry
Verified Kangtai site resources
Product documents and buyer resources
Use existing Kangtai pages for company context and product comparison; request model-specific documents for the quoted configuration.
For document control: confirm that every certificate, report, drawing and manual names the exact model and configuration in the quotation.
Buyer questions
Product FAQ
Is the battery supplied?
The product record lists a CR2032 battery and states that it is included.
Can it connect to any hub on the same frequency?
Compatibility is not established by frequency alone. Request confirmation of the receiver, protocol and pairing procedure.
What sourcing terms should be confirmed?
Kangtai publishes company-level sample, delivery and OEM/ODM terms. Confirm the final quantity, schedule, price and packaging for the selected model.
Which documents should be requested for this model?
Confirm receiver compatibility, detection gap, mounting method and indoor range. Request the model-specific specification, package contents and destination-market documents before order release.
Product enquiry
Request a quotation for Magnetic Contact Sensor 90142
Share your destination market, expected quantity and required configuration. Sales will confirm the suitable model, kit and available documentation in the quotation.
