Product description

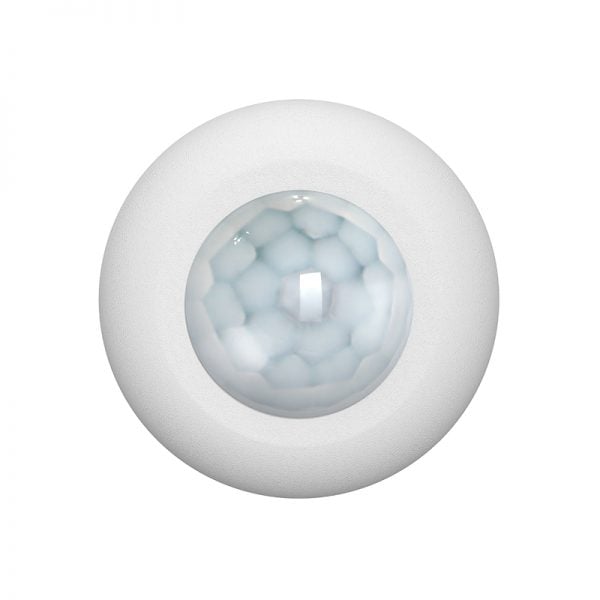

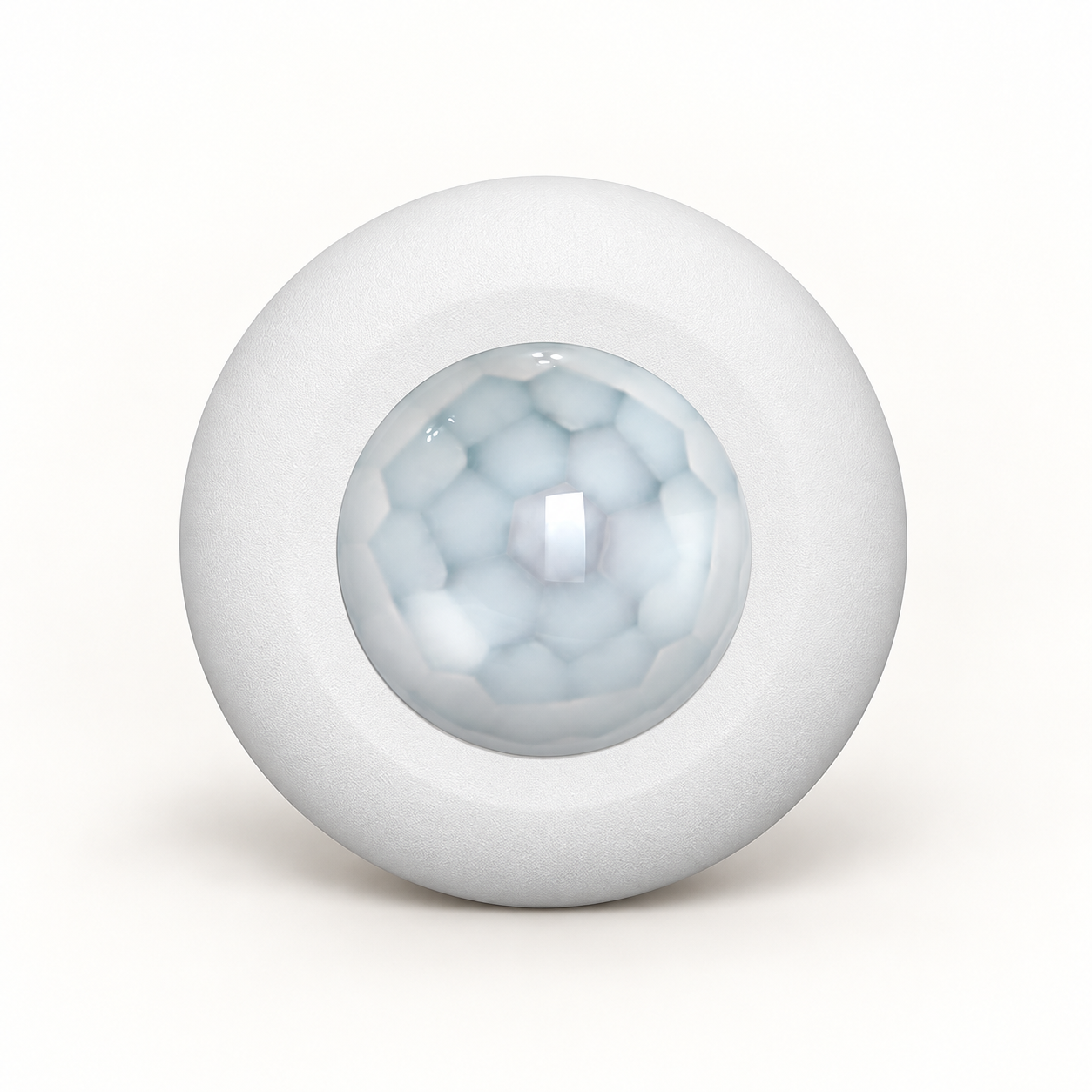

Wireless PIR Motion Detector 90141
The 90141 wireless motion detector uses PIR sensing with a 360° detection area. It has an included coin-cell battery and a separate radio link for sending signals to a receiving system.
The detector uses PIR sensing and RF transmission, with the specified coin-cell battery included. Its sensing angle and detection distance describe the area monitored by the sensor; the separate open-air radio range describes communication with a receiver. Keeping these two distances separate makes system planning more accurate.
The product record also gives operating temperature, standby current and a standby-life reference. Battery life in an installation depends on use and conditions, so the standby figure is not an unconditional service-life guarantee. Confirm the receiving system, mounting arrangement and detection settings before defining the complete package.
Published sourcing starting points
- MOQTypically 1,000 sets; depends on product type and customisation
- Lead timeAround 50 days after order confirmation
- Trade termsFOB, CIF, EXW and CIP
For a precise quotation: include model, destination market, quantity and customisation.
Technical reference
Technical specifications
| Specification | Published value |
|---|---|
| Frequency | 433.92MHz |
| Operating temperature | -10°C to 55°C |
| Battery | 1 × 3V CR2450 (included) |
| Standby current | Less than 40μA |
| Transmission power | Less than 5dBm |
| Standby time | Up to 1 year |
| PIR detection area | 360° |
| PIR detection range | At least 7m |
| Open-air radio range | Max. 50m |
Published model references
Compare model references before quotation
90141 is the motion detector reference. The receiving device is not identified in this product record. Use the cards below to identify the published reference; sales should confirm the final kit and market version in writing.
90141
Wireless PIR detector
Confirm the receiver and mounting instructions for the intended sensing area.
Published product highlights
Features buyers can evaluate
The product record supports the following feature statements. Project performance and supporting documents should be confirmed against the exact quoted configuration.
All-around sensing reference
The PIR detection area is stated as 360°. Request mounting-height and coverage drawings to apply that figure to a room.
Separate sensing and transmission distances
The PIR range describes detection; the open-air radio figure describes communication with a receiver. Neither is a guarantee of installed coverage.
Battery-operated sensor
The CR2450 battery is listed as included. The standby-time statement is not a guarantee of battery life under every triggering pattern.
Planning guidance
Selection guide
Plan the detection area
Request the coverage diagram, mounting height and sensitivity behaviour for the actual location.
Choose the receiving system
Provide the receiver or controller reference and confirm protocol, pairing and supported actions.
Check operating conditions
Compare the ambient temperature and expected trigger rate with the intended installation; request enclosure and battery-replacement details.
Use the exact model and application details when requesting a sample or quotation.
Company profile from Kangtai About Us
Manufacturing and development at Kangtai
Kangtai Electric:Technology-Based & Export-Oriented
Founded in 1995, Kangtai Electric presents itself as a National High-tech Enterprise operating under ISO9001, ISO14001 and OHSAS18001 management systems.
- Relevant product scope: smart home and security control products, wireless remote switches, wireless doorbells and voltage testers.
- Development facilities: a Wenzhou city-level Technology Development Center, Mold Manufacturing Center and ISO laboratory.
- Electronics production: DEK solder-paste printing, Yamaha high-speed SMT, Vitronics-Soltec reflow soldering and Saki AOI are listed on the company page.
Supplier context: These figures and facilities are company-level statements from Kangtai About Us.
Request model-specific certificates and test documents for the destination market. Company management systems do not establish approval for every product configuration.
Published company-level customisation scope
OEM/ODM options and sourcing terms to confirm
Kangtai accepts OEM/ODM enquiries for appearance, functionality and packaging. The scope for this model is agreed after review of the requirements.
Model and electrical version
Confirm the exact regional or receiver configuration and any functional changes with the product team.
Packaging and labels
The company FAQ offers customised packaging, instruction manuals and rating labels. Supply the artwork and required market languages.
Samples and documents
Request the intended configuration for testing, with the drawings, instructions and market documents needed for approval.
Published starting points for sourcing
Kangtai’s current company FAQ publishes general terms; they are not a commitment for this model. The product quotation must confirm the final terms.
- Standard-product MOQ
- Typically 1,000 sets; depends on product type and customisation
- Sample preparation
- Typically 10–15 days
- Production lead time
- Around 50 days after order confirmation
- Warranty
- 12 months from shipment, under the published company terms
- Trade terms
- FOB, CIF, EXW and CIP
- Packaging
- Export cartons and neutral colour boxes; custom packaging by enquiry
Verified Kangtai site resources
Product documents and buyer resources
Use existing Kangtai pages for company context and product comparison; request model-specific documents for the quoted configuration.
For document control: confirm that every certificate, report, drawing and manual names the exact model and configuration in the quotation.
Buyer questions
Product FAQ
Is the detection range the same as the radio range?
No. The source states PIR detection of at least 7m and a maximum open-air radio range of 50m; they describe different functions.
Is this a complete alarm system?
This record covers the detector. It does not identify an included hub, siren or receiver.
What sourcing terms should be confirmed?
Kangtai publishes company-level sample, delivery and OEM/ODM terms. Confirm the final quantity, schedule, price and packaging for the selected model.
Which documents should be requested for this model?
Confirm the receiver, mounting height, coverage diagram and trigger behaviour. Request the model-specific specification, package contents and destination-market documents before order release.
Product enquiry
Request a quotation for Wireless PIR Motion Detector 90141
Share your destination market, expected quantity and required configuration. Sales will confirm the suitable model, kit and available documentation in the quotation.
