Product description

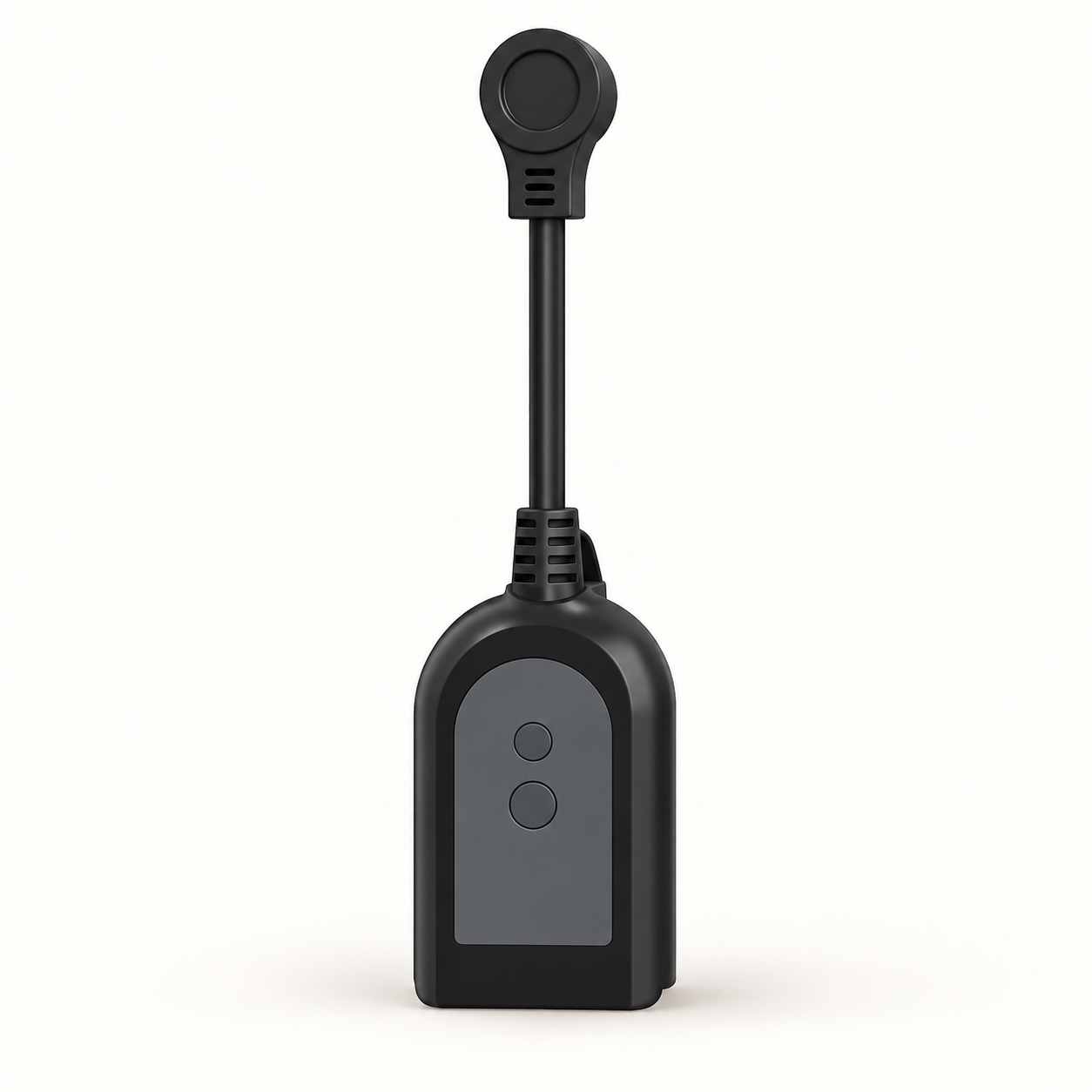

Remote Control Outlet 52085 with Photocell Sensor
The 52085 remote control outlet combines a photocell sensor with a timing remote. The socket is rated at 1800W / 15A for a 120V, 60Hz supply.
The socket combines remote control with a photocell and selectable countdown durations. Its source lists a USA mains rating, open-air distance, standby consumption and the remote battery type. These features provide more scheduling and light-related selection points than a socket described only by basic remote switching.
The exact interaction between the photocell, countdown and remote commands needs to be matched to the intended use. The source uses waterproof wording without stating an IP class, and does not establish a particular light threshold or automatic dusk sequence. Request the operating instructions and enclosure rating for the quoted configuration.
Published sourcing starting points
- MOQTypically 1,000 sets; depends on product type and customisation
- Lead timeAround 50 days after order confirmation
- Trade termsFOB, CIF, EXW and CIP
For a precise quotation: include model, destination market, quantity and customisation.
Technical reference
Technical specifications
| Specification | Published value |
|---|---|
| Socket model | 52085 |
| Load rating | 1800W / 15A |
| Supply | 120V~ 60Hz |
| Open-air range | Max. 80m |
| Protection description | Waterproof; IP class not stated |
| Standby | Less than 0.3W |
| Sensor | Photocell sensor |
| Timing remote | 50137 |
| Remote battery | CR2032 3V |
| Countdown choices | 2H, 4H, 6H, 8H |
Published model references
Compare model references before quotation
52085 is the socket reference and 50137 is the timing remote. Confirm the complete package and operating modes. Use the cards below to identify the published reference; sales should confirm the final kit and market version in writing.
52085
Socket with photocell sensor
Confirm the enclosure class and light-sensing behaviour.
50137
Timing remote
Countdown choices: 2H, 4H, 6H, 8H.
Published product highlights
Features buyers can evaluate
The product record supports the following feature statements. Project performance and supporting documents should be confirmed against the exact quoted configuration.
Four countdown selections
The listed durations give buyers a concrete way to compare timed-control requirements.
Photocell-equipped socket
A photocell sensor is listed. Request switching thresholds and mode details instead of assuming a particular dusk-to-dawn sequence.
Radio control with a defined reference
The timing remote has its own model and battery specification, helping define the configuration to be supplied.
Planning guidance
Selection guide
Describe the required schedule
State how the countdown and light sensing should work together; request instructions for available modes.
Confirm load and environment
Check appliance type, enclosure rating and protected connection requirements for the actual location.
Confirm remote setup
Request frequency, pairing limits, package quantities and battery inclusion.
Use the exact model and application details when requesting a sample or quotation.
Company profile from Kangtai About Us
Manufacturing and development at Kangtai
Kangtai Electric:Technology-Based & Export-Oriented
Founded in 1995, Kangtai Electric presents itself as a National High-tech Enterprise operating under ISO9001, ISO14001 and OHSAS18001 management systems.
- Relevant product scope: smart home and security control products, wireless remote switches, wireless doorbells and voltage testers.
- Development facilities: a Wenzhou city-level Technology Development Center, Mold Manufacturing Center and ISO laboratory.
- Electronics production: DEK solder-paste printing, Yamaha high-speed SMT, Vitronics-Soltec reflow soldering and Saki AOI are listed on the company page.
Supplier context: These figures and facilities are company-level statements from Kangtai About Us.
Request model-specific certificates and test documents for the destination market. Company management systems do not establish approval for every product configuration.
Published company-level customisation scope
OEM/ODM options and sourcing terms to confirm
Kangtai accepts OEM/ODM enquiries for appearance, functionality and packaging. The scope for this model is agreed after review of the requirements.
Model and electrical version
Confirm the exact regional or receiver configuration and any functional changes with the product team.
Packaging and labels
The company FAQ offers customised packaging, instruction manuals and rating labels. Supply the artwork and required market languages.
Samples and documents
Request the intended configuration for testing, with the drawings, instructions and market documents needed for approval.
Published starting points for sourcing
Kangtai’s current company FAQ publishes general terms; they are not a commitment for this model. The product quotation must confirm the final terms.
- Standard-product MOQ
- Typically 1,000 sets; depends on product type and customisation
- Sample preparation
- Typically 10–15 days
- Production lead time
- Around 50 days after order confirmation
- Warranty
- 12 months from shipment, under the published company terms
- Trade terms
- FOB, CIF, EXW and CIP
- Packaging
- Export cartons and neutral colour boxes; custom packaging by enquiry
Verified Kangtai site resources
Product documents and buyer resources
Use existing Kangtai pages for company context and product comparison; request model-specific documents for the quoted configuration.
For document control: confirm that every certificate, report, drawing and manual names the exact model and configuration in the quotation.
Buyer questions
Product FAQ
Which countdown settings are listed?
The 50137 remote lists 2H, 4H, 6H and 8H.
Is a dusk-to-dawn operating sequence specified?
The source lists a photocell sensor but does not describe the switching sequence or its interaction with the remote.
What sourcing terms should be confirmed?
Kangtai publishes company-level sample, delivery and OEM/ODM terms. Confirm the final quantity, schedule, price and packaging for the selected model.
Which documents should be requested for this model?
Confirm photocell operating modes, IP class, remote pairing and package contents. Request the model-specific specification, package contents and destination-market documents before order release.
